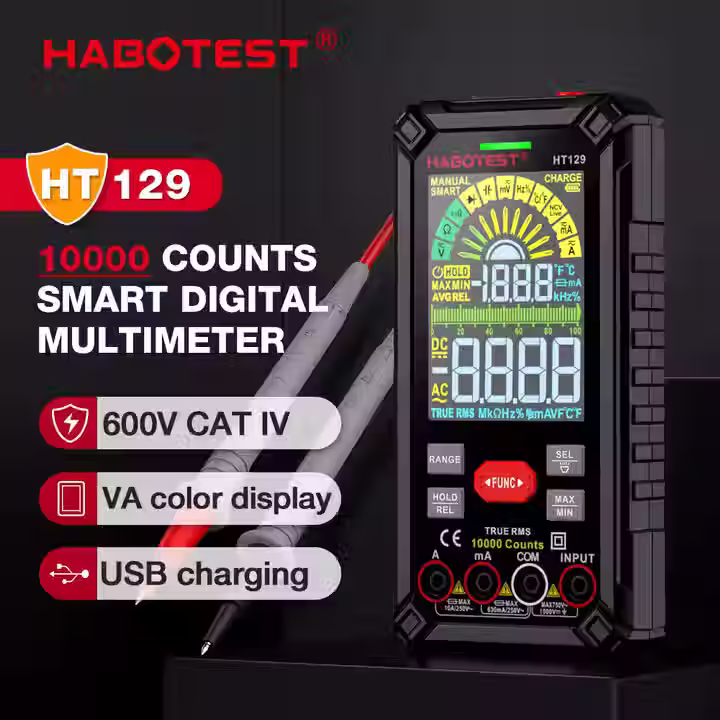

Habotest Multi Meter Tools HT129
£40.95
Excluding VAT
This meter is an intelligent true RMS digital multimeter. It has intelligent and professional measurement function. Full function, with gear display, analog bar multiple display.
Quantity
More Information
Features: With clear screen, which can let you operate and see the data more clearly, give you a better using experience.
Multifunction: It can be used for AC and direct current voltage and current measurement, capacitance and resistance measurement, NCV non contact voltage and temperature measurement, diode and continuity measurement, firewire and null wire recognition. With the double sound and light alarm function, which can remind you in a better way. With the soft and durable protective cover and seismic protecting function, which can protective the multimeter and prolong the service time of it. With flashlight and backlight function, you can use it in dim lighting environment or in the dark.
The instrument turns on the automatic shutdown function by default. Without any key operation for about 15 minutes, the instrument will automatically shut down to save battery energy.
Technical Specification
|
Function |
Range |
Accuracy |
|
DC Voltage |
99.99mV/999.9mV:9.999V/999.9V/1000V |
±(0.5%+3) |
|
AC Voltage |
99.99mV/999.9mV:9.999V/999.9V/750V |
±(0.8%+3) |
|
DC Current |
9.999mA99.99mA999.9mA |
±(0.8%+3) |
|
9.999A |
±(1.2%+3) |
|
|
AC Current |
9.999mA99.99mA999.9mA |
±(0.8%+3) |
|
9.999A |
±(1.2%+3) |
|
|
Resistance |
99.99Ω/999.9Ω/9.999kΩ/99.9kΩ/9.999MΩ/99.99MΩ |
±(1.0%+3) |
|
Capacitance |
9.999nF/99.99nF/999.9uF/999.9uF/9.999mF/999.99mF |
±(3.0%+5) |
|
Frequency |
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
±(1.0%+3) |
|
Duty |
0.1%~99.99% |
±(1.0%+3) |
|
Temperature(℃/°F) |
-20℃~1000℃; -4°F~1832°F |
±(2.0%+3) |
|
SMART Function(AC/DC) voltage, Resistance and Continutity |
√ |
|
|
Automatic identification of current input |
√ |
|
|
Fise Burning Prompt Function |
√ |
|
|
Input Jack LED indication |
√ |
|
|
Counts |
10000 Counts |
|
|
Display |
VA colour display screen |
|
|
Bargraph |
√ |
|
|
Live test |
√(sound and light alarm) |
|
|
NCV |
√(sound and light alarm) |
|
|
Diode test |
√ |
|
|
Continuity test |
√(sound and light alarm) |
|
|
MAX/MIN Data Hold |
√ |
|
|
Relative measurement |
√ |
|
|
Data hold |
√ |
|
|
True RMS |
√ |
|
|
Bandwidth |
40-1KHz |
|
|
Low battery indication |
√ |
|
|
Auto power off |
√ |
|
|
Flashlight |
√ |
|
|
Battery Charge Function |
√ |
|
|
Power Indication Function |
√ |
|
|
Power |
3.7V Li-ion battery |
|
|
Weight |
Approx.280g |
|
|
Size |
167 x 83 x 30 mm |
|
|
Safety Rating |
EN61010-1,-2-030 EN610-2-033,EN61326-1 CAT III 1000V, CATIV 600V |
